Sistema de dispensación de fluidos multifuncional

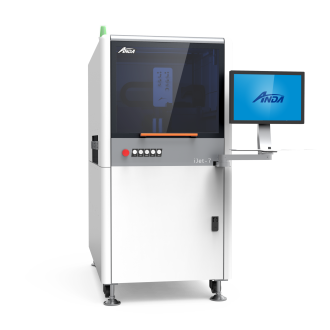

Los sistemas de dispensado de fluidos iJet7 y iJet7L ofrecen precisión y flexibilidad con una combinación de cabezal de dispensado electrónico y software de control.
Fortalezas
Alta precisión para el eje X-Y-Z.
Control técnico de circuito cerrado para garantizar la consistencia del volumen de dispensado.
Sistema de visión CCD incorporado.
Limpieza automática de boquillas.
Diseño flexible, fácil de actualizar.
Gran área de trabajo disponible.
Especificaciones del sistema
| iJet-7 | iJet-7L | |
| Board Handling | ||
| Standard Work Area |
Single valve X 380 × Y 450 x Z 30 mm (X 14.96" × Y 17.71" x Z 1.18") Dual valve X 260 × Y 450 x Z 30 mm (X 10.23" × Y 17.71" x Z 1.18") |
Single valve X 650 × Y 650 x Z 30 mm (X 15.75" × Y 19.68" x Z 1.18") |
| Maximum Components Height | ± 30 mm (1.18") from PCB | |
| Acceleration | 0.8 g | |
| PCB Edge Clearance |
≥ 3 mm (≥ 0.12") |
|
| PCB Clearance Topside | 30 mm (1.18") | |
| Maximum Conveyor Width | 450 mm (17.71") | 650 mm (25.59") |
| Minimum Conveyor Width | 50 mm (1.97") | |
| Fluid Volume | 30 cc | |
| Fluid Level Sensor | Automatic monitor | |
| Intelligent Automatic Nozzle Cleaner | Non-contact vacumm nozzle cleaning | |
| Transmission System | |
| Conveyor Quantity | 1 pair |
| Conveyor Type | Thermostable ESD belt |
| Process Flow | L to R (Standard), R to L (Optional) |
| Conveyor Height | 950 ± 20 mm (37.40" ± 0.79") |
| Conveyor Speed | 2 - 13 m/min |
| Conveyor Width Adjustment | Automatic (motorized) |
| Width Adjustment Speed | 250 mm/min |
| Maximum Loading | 4 kg/m (even distribution) |
| XYZ Axis Configuration | ||
| Number of Valves | Single valve (Optional : Dual valves) | Single valve only |
| Motor |
Servo motor with ball screw |
|
| Maximum Speed | 1000 mm/s | 800 mm/s |
| Repeatability | ± 0.01 mm (± 0.0004") | ± 0.015 mm (± 0.00059") |
| Facility | ||
| Standard Footprint |
L 780 × W 1600 × H 1600 mm (L 30.70" × W 62.99" × H 62.99" ) |
L 1220 × W 1600 × H 1600 mm (L 48.03" × W 62.99" × H 62.99" ) |
| Weight | 700 kg (1540 lb) | 1350 kg (2970 lb) |
| Air Source | ≥ 0.65 Mpa |
|
| Extraction | ≥ 6.5 kgf/m3 |
|
| Input Power | AC 220 V 50/60 Hz 1 Phase |
|
| Total Power | 2.5 Kw |
|
| Interface | |
| Controller | IPC and motion controal card |
| Software | Anda user interface with Windows OS |
| Programming | On-line vision programming |
| Communications Protocol | SMEMA |
