Serie de horno de curado

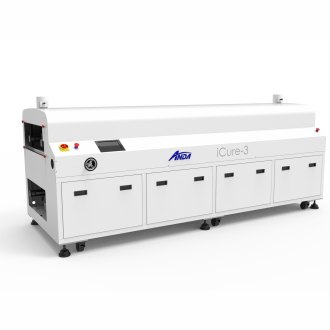

iCure-3-3

iCure Series Horno Infrarrojo

iCure Series Horno de curado infrarrojo (IR)

Pagina de Datos

La serie iCure es un módulo de curado infrarrojo (IR) compacto en línea adecuado para el curado rápido de alto volumen de revestimientos, adhesivos y tintas curables por calor.

Especificaciones del sistema

Transmission System
Component Height

± 100 mm (± 3.93")

Board / Pallet Width 50 - 460 mm (1.96" - 18.11")
Process Flow L to R
Conveyor Height   900 ± 20 mm (35.53" ± 0.79")
Conveyor Speed (XY) 0.5 - 5 m/min.
Conveyor Width Adjustment Manual
Maximum Loading 4 kg/m at even distribution





Temperature Configuration
Number of Heat Zone

2 / 3 / 4

Temperature Control Range Room temperature - 100 °C (adjustable)
Heating Zone Power 600W x 7 heat tubes at each zone
Temperature Stabilization Time 10 minutes
Temperature Control Accuracy ± 5°C





Facility
Standard Footprint

L 2000 / 3000 / 4000 x D 1070 x H 1300 mm

(L 78.74" / 118.11" / 157.48" x D 42.12" x H 51.18")

Weight

  400 kg / 700 kg / 1000 kg

(iCure-2 / iCure-3 / iCure-4)

Input Power 3 Phase 380 VAC (Standard)
Exhaust Requirement 5 m3/min
Total Power 9 KW / 13 KW / 18 KW





Interface
Controller PLC and touch screen
Communication Protocol SMEMA
