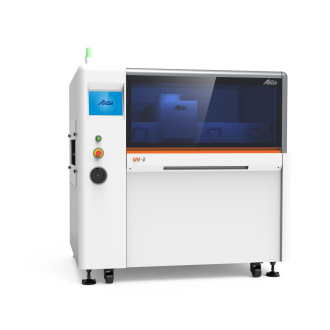

This UV serics is a compact, inline UV curing system. The UV curing oven is suitable for high intensity, rapid curing of UV curable coatings, adhesives, and inks.
Standard Features
Edge carrying, variable speed pin chain conveyor
Rail expansion compensation
PLC controller and touch screen
100 mm top and bottom side component clearance
SMEMA communication protocol
CE certified
Optional Features
Dual UV lamp for UV curing
Top and bottom side simultaneous curing
Return conveyor
System Specifcations
| Transmission System | |
| Component Height |
± 100 mm (± 3.93") |
| Board / Pallet Width | 50 - 460 mm (1.96" - 18.11") |
| Process Flow | L to R |
| Conveyor Height | 900 ± 20 mm (35.53" ± 0.79") |
| Conveyor Speed (XY) | 0.5 - 5 m/min. |
| Conveyor Width Adjustment | Manual |
| Maximum Loading | 4 kg/m at even distribution |
| Facility | |
| Standard Footprint |
L 1500 x D 1137 x H 1460 mm (L 59.05" x D 44.76" x H 57.48") |
| Weight | 400 kg |
| Input Power | 3 Phase 380 VAC |
| Power | 7.0 KW (Single UV lamp) |
| UV Cure Beam Width | 620 mm (24.40") |
| Interface | |
| Controller | PLC and touch screen |
| Communication Protocol | SMEMA |
| Ultraviolet Irradiation | |
| UVA | > 500 mW/cm2 |
| UVB | > 500 mW/cm2 |
| UVC | > 100 mW/cm2 |
